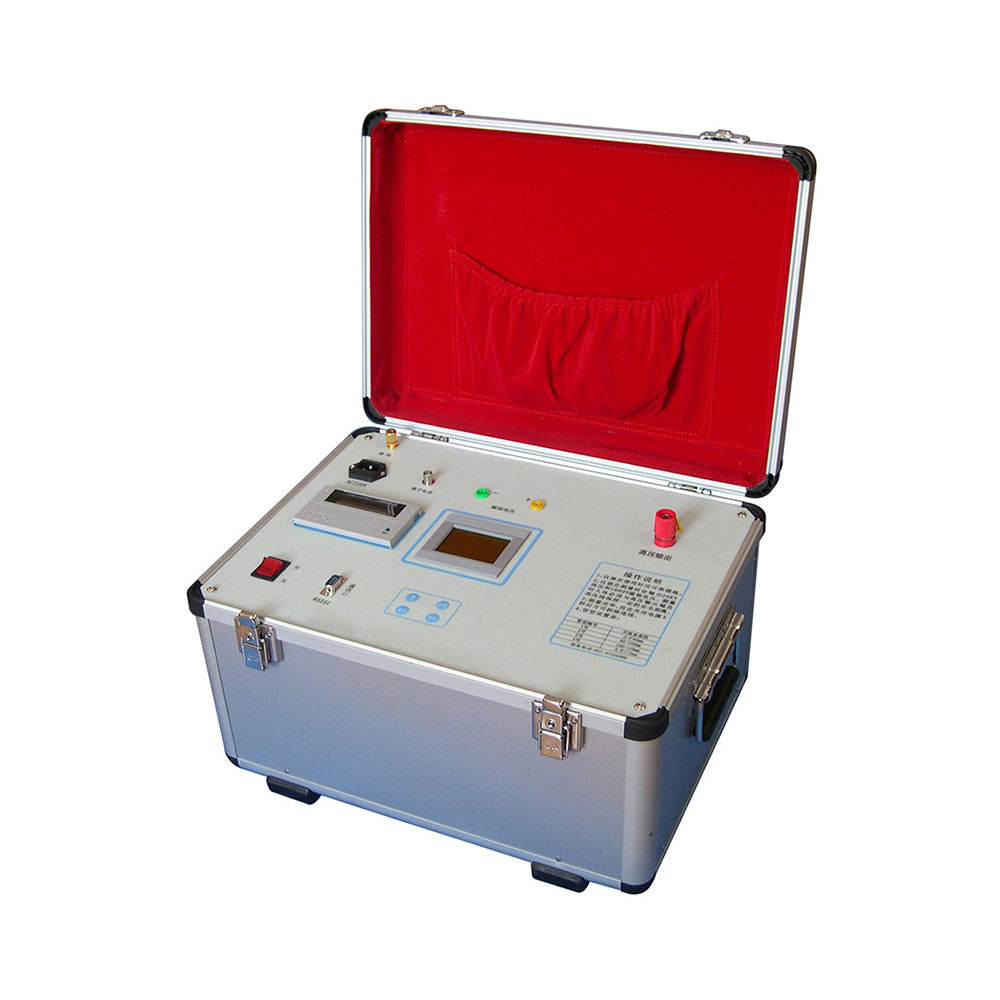

BL-303 Vacuum Interrupter Tester

Introduction

    BL-303 Vacuum interrupter tester is the latest product improved on the basis of the original product based on the reflection of the site users. It has the characteristics of higher test precision, better stability and higher intelligent.

    Vacuum circuit breaker is a commonly used method to judge whether the vacuum degree of vacuum tube is deteriorated or not. It is a power frequency withstand voltage method. This method is only able to judge the quenching chamber with serious deterioration of vacuum degree. When the vacuum degree is deteriorated to 10^-2～10^-1Pa, the breakdown voltage is not reduced, but the arc extinguishing chamber is not qualified.

    BL-303 Vacuum interrupter tester uses a new type of excitation coil and uses magnetic controlled discharge to test the vacuum degree of the arc extinguishing chamber, and it is not necessary to dismantle the arc extinguishing chamber. At the same time, the microcomputer is used for synchronous control and data acquisition, so that the sensitivity of the vacuum degree of the arc extinguishing chamber is up to 10-5Pa The most prominent feature of this instrument is the use of a new excitation coil and data processing method to realize the non disassembly measurement of the vacuum degree. The instrument has the advantages of convenient operation, simple operation, no disassembly, high accuracy and so on. It is a practical testing instrument, and is widely applied to the departments of vacuum switches, such as electric power, steel, petrochemical, textile, coal and railway.

Technical Specifications

    ● Detection object: Various types of vacuum switch.

    ● Test method: Non disassembly measurement of vacuum tube by using a new excitation coil

    ● Scope of application: This instrument is a multipurpose machine and can be used for measuring various types of vacuum switches

    ● Detection range: 10^-5～10^-1Pa

    ● Measurement accuracy: 10^-5～10^-4Pa，10%

                                               10^-4～10^-3Pa，10%

                                               10^-3～10^-2Pa，10%

                                               10^-2～10^-1Pa，10%

    ● Magnetic field voltage: 1700V

    ● Pulsed electric field high voltage: 30kV

    ● Switch tube open distance when measuring vacuum degree: Normal use of open distance

    ● Use environment: -20℃～40℃

    ● Host weight: 24kg

    ● Dimension: 410×320×370(mm)

    ● Sampler: magnetically controlled coil
